ALX3000 Interlock Breathalyser is designed to be fitted into vehicles to prevent drivers from starting a motor vehicle when they are confirmed to be under the influence of alcohol at a pre-set level.

The composition of ALX3000 consists of a handset for the breathalyser test and an interlock control box for the electrical connection to a vehicle.

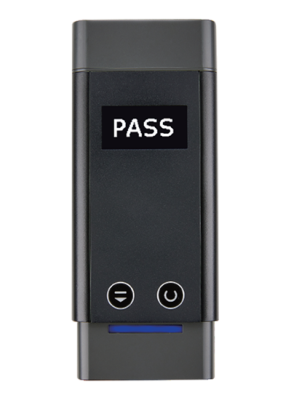

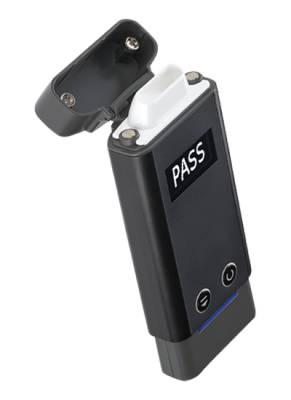

ALX3000 Breathalyser Handset:

Alcohol Sensor: Fuel Cell Sensor to detect alcohol in breath

Temperature sensor: Temperature detection, environment, breath, etc.

Flow sensor: Detects breath pressure & volume of exhaled air

Altitude Sensors: Adjustment of breathing deviation according to altitude

Breath sampling tube: the structure that accepts breathing under certain conditions

Chamber: Maintains exhaled breath conditions (temperature & humidity)

Pump: Structure that accepts a certain amount of breathing time.

MCU: Management of measurement algorithm

Memory: Stores the measured reference value and the measured result value

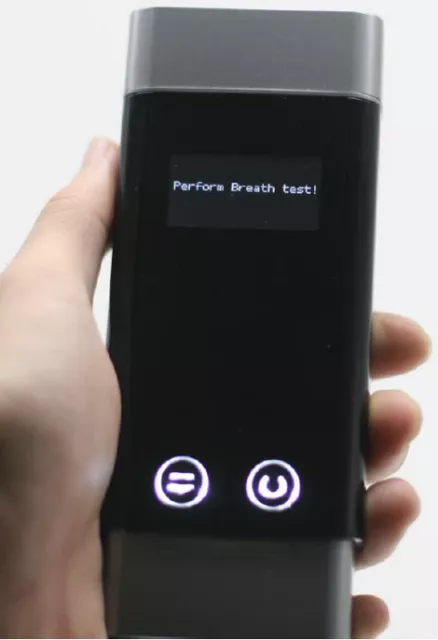

Display: Displays the status and measurement result values

Buzzer: Indicates the status and measurement result as sound
